Flexible wiring to accommodate a broad range of applications

The units wire using CAT-5e/6 cable, allowing for easy installation into new or retrofit projects.
Save money!! Install the JP Series using today’s most readily available and dependable wiring method.

Wiring distance between each device

CAT-5e/6
(24AWG)
Wire diameter (PE cable) Notes
Ø0.65 mm
(22 AWG)
Ø0.8 mm
(20 AWG)
Ø1.0 mm
(18 AWG)
Ø1.2 mm
(16 AWG)
A 30m (98') - When 3 room stations are powered by a single power supply
B 200m (650') -
C 50m (165') - When 2 room stations are powered by a single power supply
D 50m (165') -
E - 50m (165') 100m (330') 100m (330') 100m (330')
F - 5m (16') 5m (16') 10m (33') 10m (33')
G - 5m (16') 10m (33') 10m (33') 10m (33')
H - 100m (330') 150m (490') 200m (650') 200m (650')
I - 50m (165') 75m (245') 100m (330') 100m (330')

Symbols

Master station
Sub master station
PS-2420S,PS-2420UL
CAT-5e/6(non-shielded)
PE cable(2-conductor)

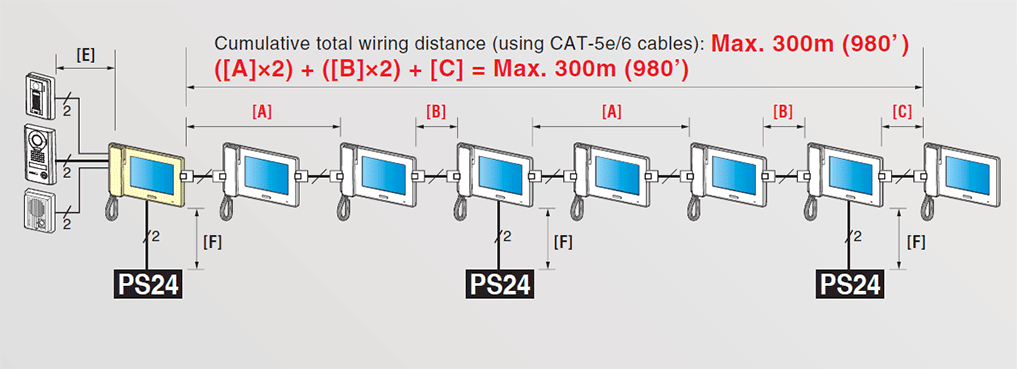

Station-to-Station (Daisy-chain) Wiring

Directly connect a master station to a sub master station. This wiring style is perfect for projects where maximum distance is a concern.

Station-to-Station (Daisy-chain) Wiring

[A], [C]: A single power supply can power up to 1 master and 2 sub master stations, or 3 sub master stations.
 The wiring distance varies depending on the number of powered room stations.
・See "Wiring distance between each device" above for the maximum distance between each device.

Centralized (Home-run) Wiring

Connect master stations to a central wiring adaptor to simplify wiring over a widespread project.

Centralized (Home-run) Wiring

(*1): The master station requires a power supply.
(*2): Up to 4 sub master stations can be powered with one power supply. Use two power supplies for 5 - 7 sub master stations.
・See "Wiring distance between each device" above for the maximum distance between each device.

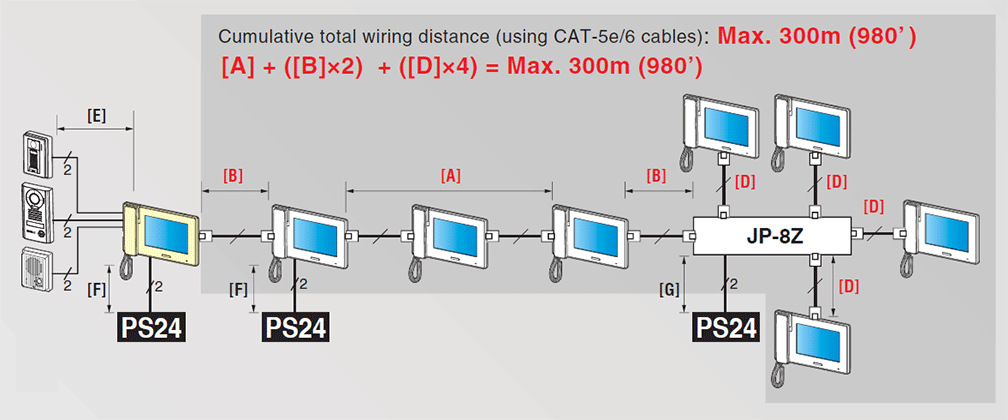

Combined Wiring

Connect a system using both station-to-station and centralized wiring to meet the requirements of the project.

Combined Wiring

・See "Wiring distance between each device" at left for the maximum distance between each device.

Long distance wiring and CCTV integration

With various wiring methods, family and property can remain secure even over long distances. Integrating CCTV cameras provides the consumer additional surveillance around the home or office.

Drastically extend the maximum distance between door and master stations.

Double the wiring distance between the door and master stations by using the JPW-BA adaptor. When used, the maximum distance can reach an amazing 600m!

Drastically extend the maximum distance between door and master stations

・See "Wiring distance between each device" at left for the maximum distance between each device.

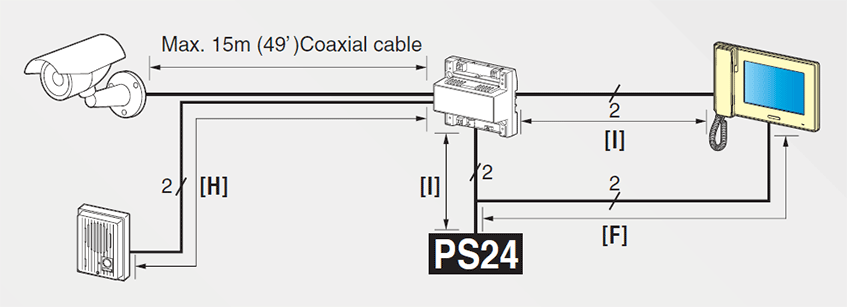

Connect CCTV and Audio Door Station

See the surrounding area by connecting a security camera using the JPW-BA adaptor. The same adaptor allows for two way communication when a GT-D is added.

Connecting CCTV and audio door station (GT-D)

・See "Wiring distance between each device" at left for the maximum distance between each device.
