Access control

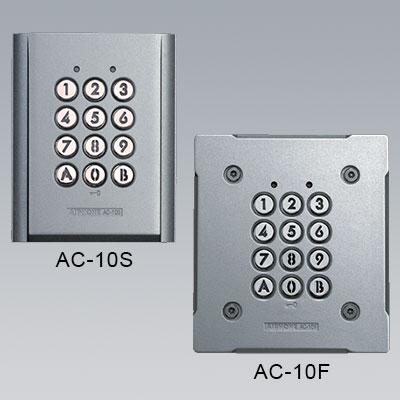

AC-10S

Vandal resistant access control keypad, surface mount

AC-10F

Vandal resistant access control keypad, flush mount

Features

  • Two types of keypads are available.
  • AC-10S matches JK-DV, color video door station.
  • Vandal resistant panel, zinc die cast, and tamper proof screws are included.
  • Two independent relay outputs (N/O or N/C) are available. When same access code is programmed for both #1 and #2, two relays activate simultaneously.
  • Programmable up to 100 access codes* 4, 5, or 6 digits in length.
    * #1: up to 60, #2: up to 40
  • Keypad lockout: After too many incorrect access codes are attempted.
  • Anti-tailgate: As soon as the door is closed after access is granted on #1, the door is locked even before programmed output time. Prevent sneak in.
  • One push door release with external timer connection: While the external timer is on operation, access code is not required. Press “0” key only. Programmable #1 and/or #2.
  • External output for alarming: When “Lockout” or “Forced entry” occurs, external output is available at #2.
  • Two LED indicators show the status of the access control system.
  • Illuminated keypad is easy to read.
  • Audible key press

System Components

Product image
JK-DV

Product image
JK-1MED

Product image
IER-2

Product image
PS-1225

Product image
EL-12S
