The units wire using CAT-5e/6 cable, allowing for easy installation into new or retrofit
projects.
Save money!! Install the JP Series using today’s most readily available and dependable wiring
method.
| CAT-5e/6 (24AWG) |
Wire diameter (PE cable) | Notes | ||||
|---|---|---|---|---|---|---|
| Ø0.65 mm (22 AWG) |
Ø0.8 mm (20 AWG) |
Ø1.0 mm (18 AWG) |
Ø1.2 mm (16 AWG) |
|||
| A | 30m (98') | - | When 3 room stations are powered by a single power supply | |||
| B | 200m (650') | - | ||||
| C | 50m (165') | - | When 2 room stations are powered by a single power supply | |||
| D | 50m (165') | - | ||||
| E | - | 50m (165') | 100m (330') | 100m (330') | 100m (330') | |
| F | - | 5m (16') | 5m (16') | 10m (33') | 10m (33') | |
| G | - | 5m (16') | 10m (33') | 10m (33') | 10m (33') | |
| H | - | 100m (330') | 150m (490') | 200m (650') | 200m (650') | |
| I | - | 50m (165') | 75m (245') | 100m (330') | 100m (330') | |

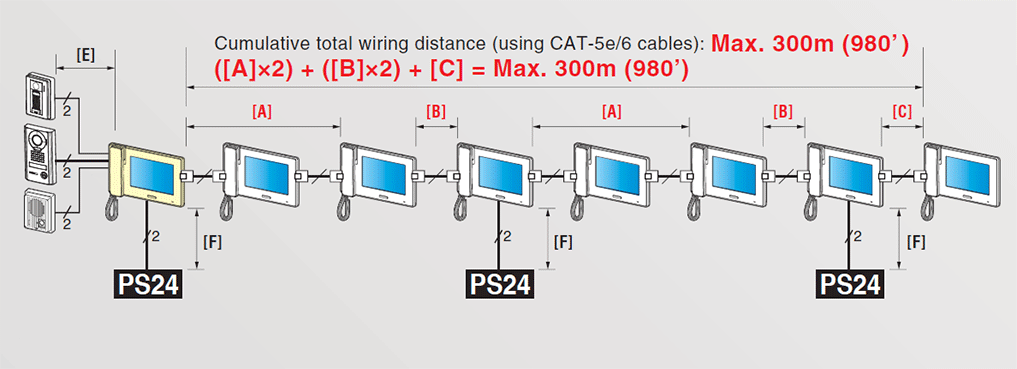

Directly connect a master station to a sub master station. This wiring style is perfect for projects where maximum distance is a concern.
・[A], [C]: A single power supply can power up to 1 master and 2 sub
master stations, or 3 sub master stations.
The wiring distance varies depending on the number of powered room stations.
・See "Wiring distance between each device" for the maximum distance between each device.

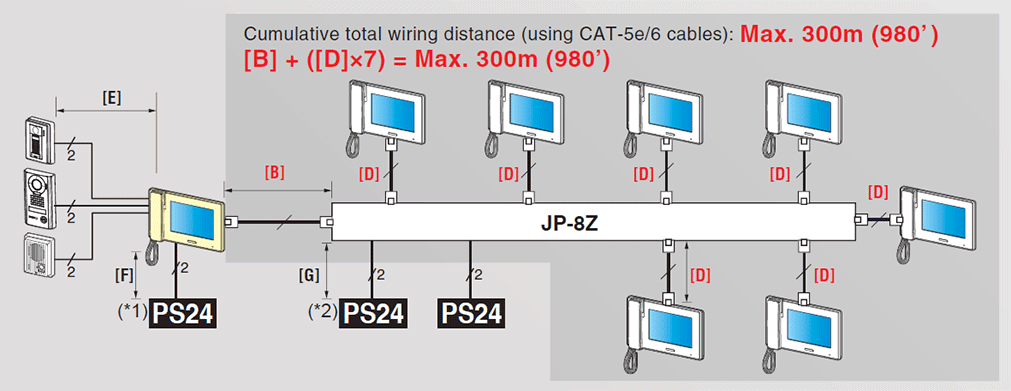

Connect master stations to a central wiring adaptor to simplify wiring over a widespread project.
*1 The master station requires a power supply.
*2 Up to 4 sub master stations can be powered with one power supply. Use two power supplies for 5 - 7 sub master stations.
・See "Wiring distance between each device" for the maximum distance between each device.

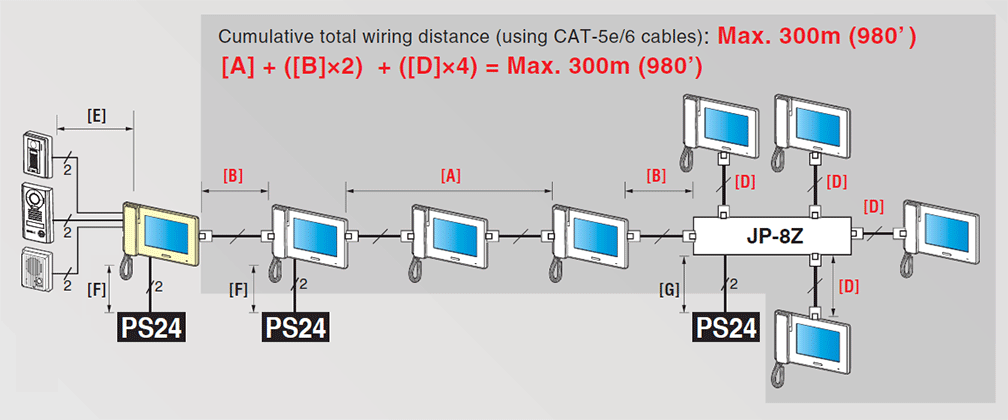

Connect a system using both station-to-station and centralized wiring to meet the requirements of the project.
・See "Wiring distance between each device" for the maximum distance between each device.
With various wiring methods, family and property can remain secure even over long distances. Integrating CCTV cameras provides the consumer additional surveillance around the home or office.

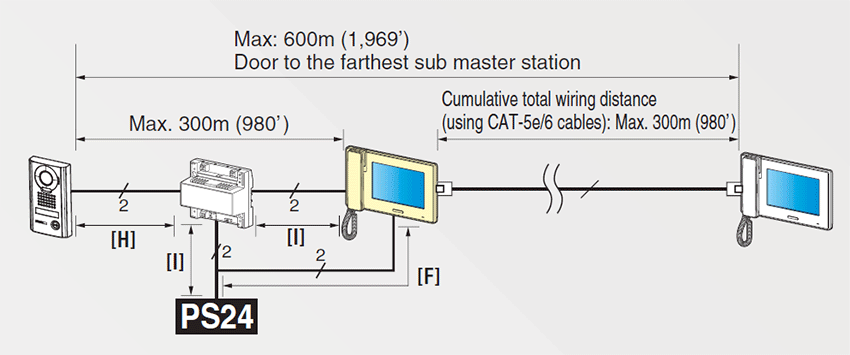

Double the wiring distance between the door and master stations by using the JPW-BA adaptor. When used, the maximum distance can reach an amazing 600m!
・See "Wiring distance between each device" for the maximum distance between each device.

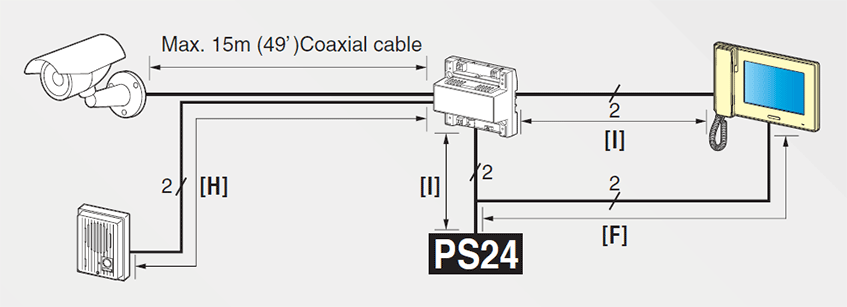

See the surrounding area by connecting a security camera using the JPW-BA adaptor. The same adaptor allows for two way communication when a GT-D is added.
・See "Wiring distance between each device" for the maximum distance between each device.
