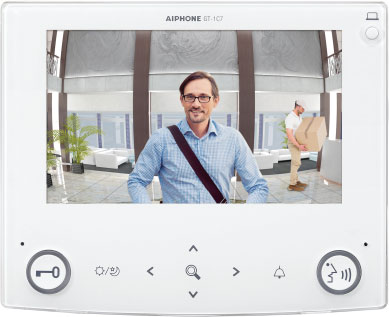

Tenant Station

7-inch Display

  • 7-inch display makes visitors easy to recognize.
  • Easy to operate with touch screen. (GT-1C7W only)
  • Functional design, intuitive control: illuminated easy-to-see buttons for door release and communication during calls from entrances. (GT-1C7 only)
7-inch Display

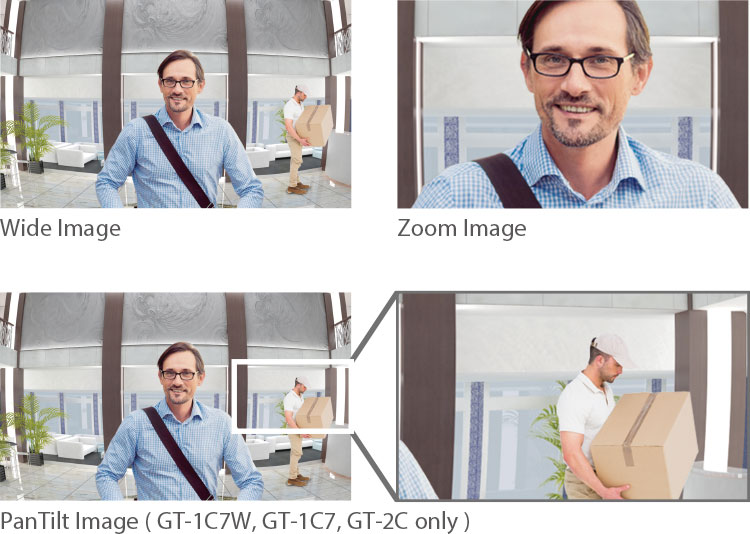

Wide / Zoom & PanTilt

  • Panoramic Wide Angle View

    To provide effective security, GT System features a wide angle camera that enables you to see a clear panoramic view. Easily see and identify visitors standing on the sides and people of all heights.
Wide / Zoom & PanTilt1
Wide / Zoom & PanTilt2

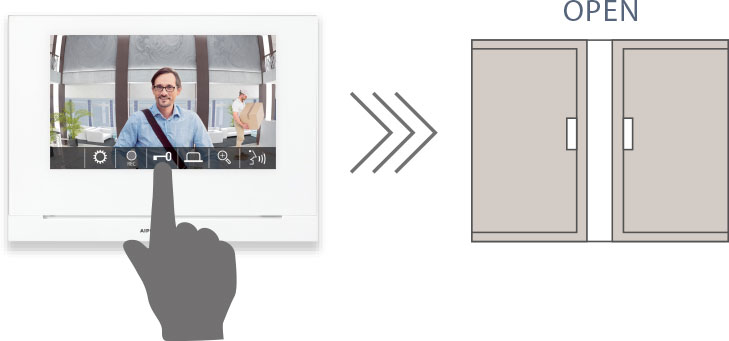

Door release

  • Confirm the visitor and surroundings then open the entrance from inside.
Door release

Video recording (GT-1C7W only)

  • Visitors video can be recorded automatically or manually.
  • Video recording for 10 seconds.
    microSDHC card: Up to 1,000 recordings
    Built-in memory: Up to 10 recordings

Specification of recommended microSD card

Standard microSDHC
Storage capacity 4 to 32 GB
Format FAT32
Speed class 10
Product image

Intercom App®(GT-1C7W only)

  • Answer calls from the entrance station anywhere inside or outside your home.
  • View recordings stored in the tenant station anywhere.
  • Release door lock.
  • Up to 8 smartphones can be registered in one tenant.

* Android is a trademark of Google LLC.
* iOS is the OS name of Apple Inc. IOS is a trademark or registered trademark of Cisco Systems, Inc. in the U.S. and other countries and is used under license.

Intercom App Aiphone Type GT. Free download. Both iOS and Android are avaiable.

Usage example

CASE 1

You can talk to your visitors from your smartphone anywhere.

Usage example CASE1

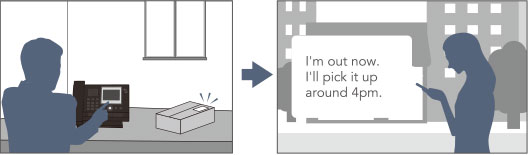

CASE 2

You can respond the call from the Security guard station on the go.

Usage example CASE2
CASE 3

If you can't answer the call immediately during work, you can confirm the visitors by recorded image later.

Usage example CASE3

Selection of tenant stations for all needs

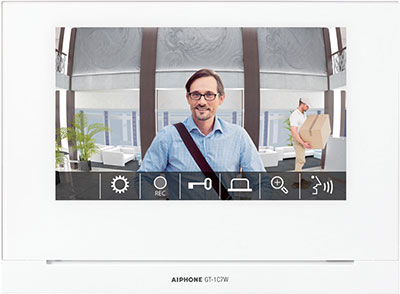

GT-1C7W
Color display tenant station

  • 7-inch display
  • Picture memory
  • Intercom App
  • Hands-free
Product image

GT-1C7
Color display tenant station

  • 7-inch display
  • Hands-free
Product image

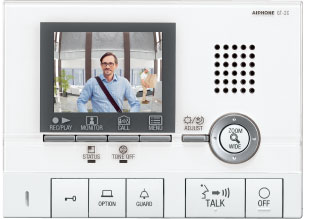

GT-2C
Color display tenant station

  • 3.5-inch display
  • Picture memory
  • Optional individual door station
  • Optional handset (GT-HS)
  • Hands-free
Product image

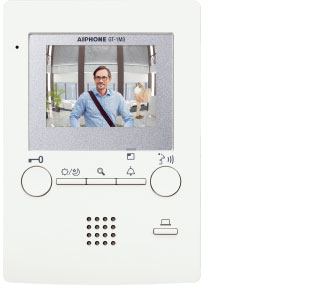

GT-1M3
Color display tenant station

  • 3.5-inch display
  • Hands-free
Product image

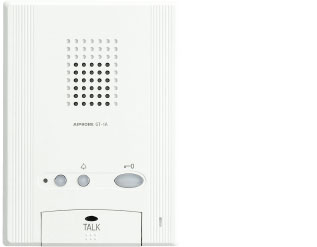

GT-1A
Audio tenant station

  • Hands-free
Product image

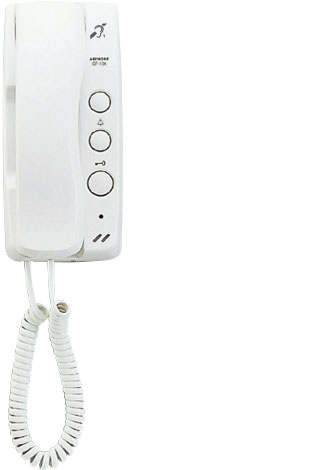

GT-1D
Audio tenant station

  • Handset
Product image

Entrance Station

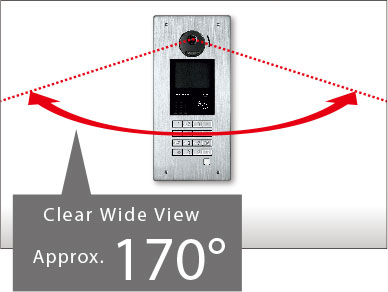

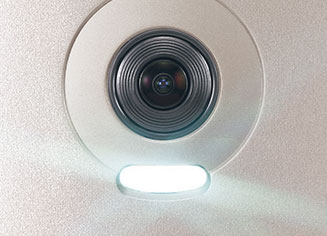

Panoramic view angle & clear color image

  • 170° angle wide view camera
  • White light LED illuminates automatically in low-light conditions.
Panoramic view angle & clear color image

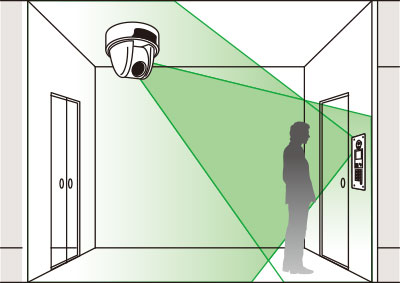

Optional security camera for more security

  • Connect an additional CCTV camera. You can select one of the cameras placed at the entrance for monitoring. This allows you to confirm visitors from various angles, thus enabling the prevention of intrusion by suspicious individuals.
Optional security camera for more security

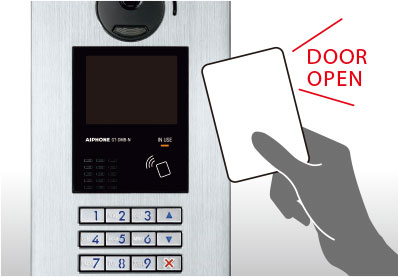

NFC Reader

  • Use the NFC reader or access codes for lock control.
  • The NFC reader can also be used for programming the system.
NFC Reader

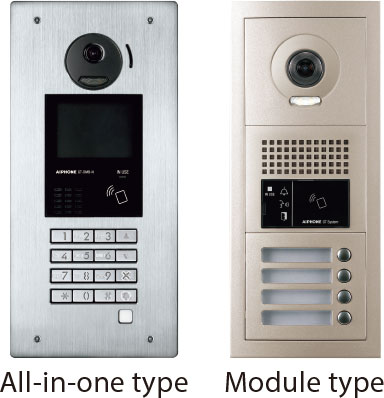

2 panel styles

  • 2 styles to choose from: All-in-one type or Module type
  • Module type allows audio only and other configurations.
2 panel styles

Guard Station

3.5-inch display

  • Easy operation for all guard functions
  • Video monitoring of entrance stations

Wide / Zoom & PanTilt

  • See the 170° wide view video from the entrance stations.
  • Use zoom and pantilt functions for a detailed view.

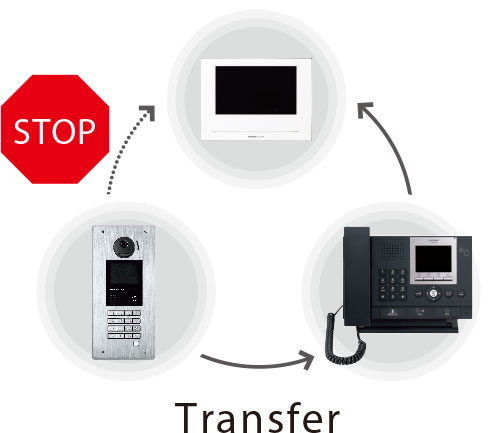

Reception mode function

  • Using this function, all entrance station calls are automatically transferred to the guard station, giving the security guard the ability to screen visitors.
Reception mode function

Can connect an individual video door station (JO-DV)

  • Automatic LED illuminator for low light conditions
Can connect an individual video door station (JO-DV)

System Variation

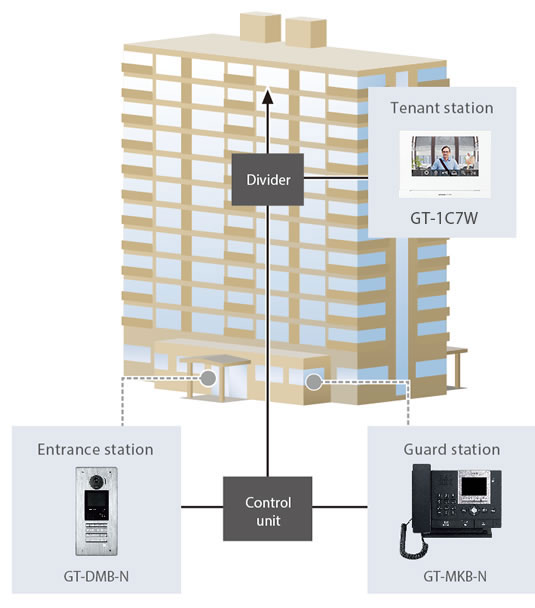

Single building system

  • Ideal for small- and medium-size residential buildings
  • Audio only configuration also possible
Single building system

Maximum Capacity

Tenant building / section
Standard system Expanded system
Entrance station 5 16
Guard station 2 4
Tenant station 48*1 500

*1 Up to 100 GT-1D audio tenant stations can be connected when configuring a standard audio only system.

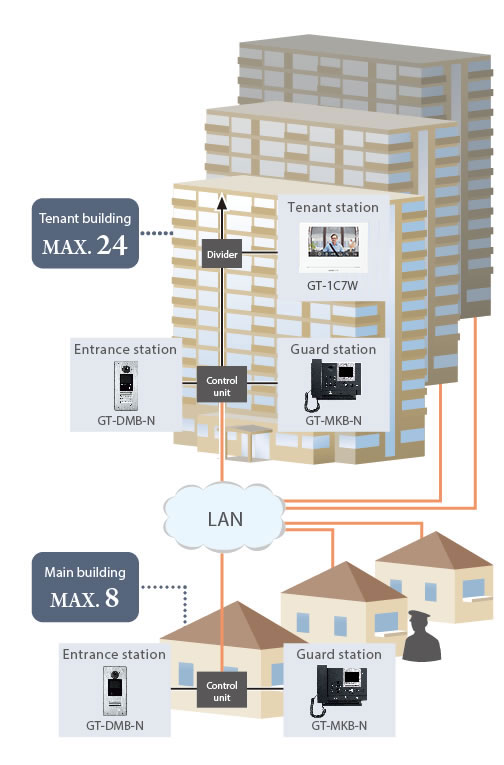

Multi building system

  • Install one system for housing complexes with multiple buildings.
  • Cover a building with more than 500 units with one system.
  • Building management from anywhere via IP network connection
  • Audio only configuration for tenant buildings also possible
Multi building system

Maximum Capacity
(Number of stations are per building / section)

Tenant building / section Main building / section
Standard
system
Expanded
system
Standard
system
Expanded
system
Entrance station 4 15 4 15
Guard station 1 3 1 3
Tenant station 48 500 - -

Total maximum capacity
(Total for tenant building / section and main building / section)

Entrance station 480
Guard station 96
Tenant station 5,000

New Technology

IP technology

  • Multiple tenant buildings and main buildings can be connected via an IPnetwork to create a multi building system for centralized management.
  • A maximum of 24 tenant buildings and 8 main buildings can be connected.
  • Multiple tenant buildings can be combined to accommodate large-scale residential buildings with more than 500 units.
  • Connects buildings together and enables communication.
IP technology
IP technology2

System programming and NFC technology

Easy system setting on a PC or Android mobile device

  • Settings can be made from a PC or Android mobile device by using GT Setup Tool.
  • Supported OS:Windows 7, 8.1, 10.*2, 3
  • Supported Android OS version: Android 5.0 and greater.*4

*2 For operating systems not listed, please contact your AIPHONE distributor.
*3 Windows is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
*4 Android is a trademark of Google LLC.

System programming and NFC technology

Uploading the setting data

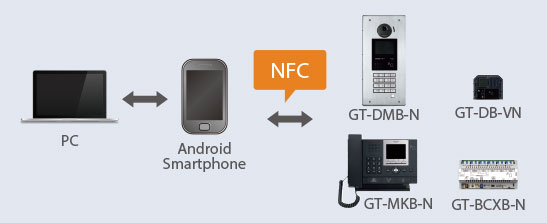

Uploading using an Android mobile device
for GT-DMB-N, GT-DB-VN, GT-MKB-N, GT-BCXB-N (W/NFC reader)

Uploading using an Android mobile device

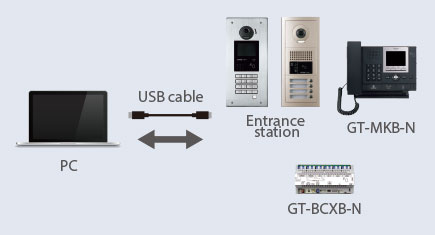

Connecting a unit to a PC via USB

Connecting a unit to a PC via USB

Uploading using a network connection

Uploading using a network connection
