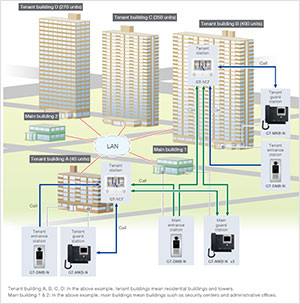

Installation example

e.g. 4 Tenant buildings (4 Entrance stations, 4 Guard stations, 1,060 Tenant stations)
2 Main buildings (2 Entrance stations, 6 Guard stations)

• Can be configured as a single system without creating separate systems for each building.
• Connect buildings through an IP network. Ideal for large sites with long distances between buildings.
• The main building can communicate with all tenant buildings.

Click to expand

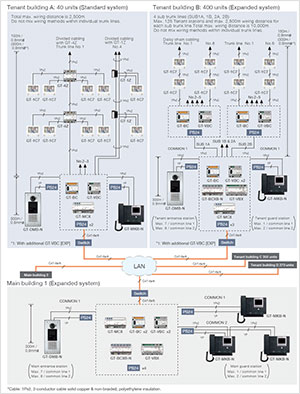

System configuration example

Click to expand

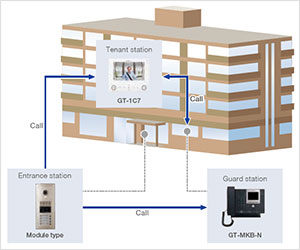

Installation example

e.g. 3 Tenant sections (1,100 Tenant stations)
1 Main section (3 Entrance stations, 3 Guard stations)

• Multi-building control units allow systems to be configured without having to use separate systems for each section.
• All tenant stations can be called from any entrance station or guard station.

Click to expand

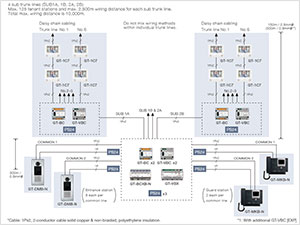

System configuration example

Click to expand

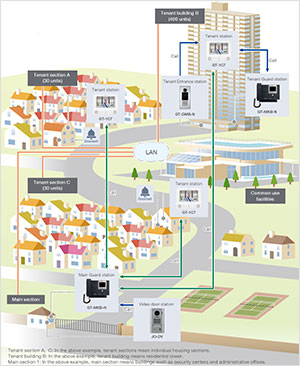

Installation example

e.g. 2 Tenant sections (60 Tenant stations)
1 Tenant building (1 Entrance station, 1 Guard station, 400 Tenant stations)
1 Main section (1 Guard station)

• All sections (buildings) can be configured in a single system without creating separate systems for different types of buildings.
• Connect sections through an IP network. Ideal for large sites with long distances between sections.
• The main section can communicate with all tenant sections.

Click to expand

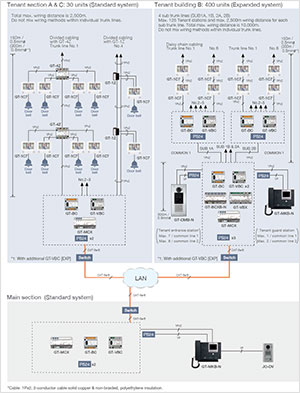

System configuration example

Click to expand

Installation example

e.g. 1 Tenant building (1 Entrance station, 1 Guard station, 20 Tenant stations)

Proposed system:
1 Standard system in tenant building.
Maximum capacity

* Possible to mix video and audio only tenant stations.

Click to expand

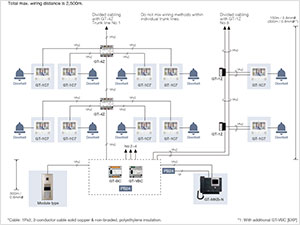

System configuration example

Click to expand

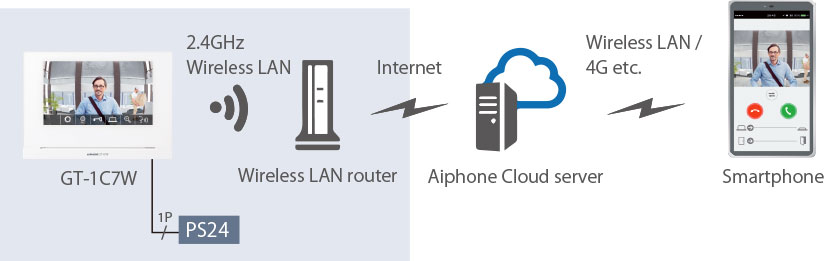

System configuration example

• * A wireless LAN router can register for only one GT-1C7W in the same room number.
• * Ensure that your internet connection for both the master monitor station and your smartphone meets the minimum requirements for using the application. (1.5Mbps for download and 1.5Mbps for upload)
