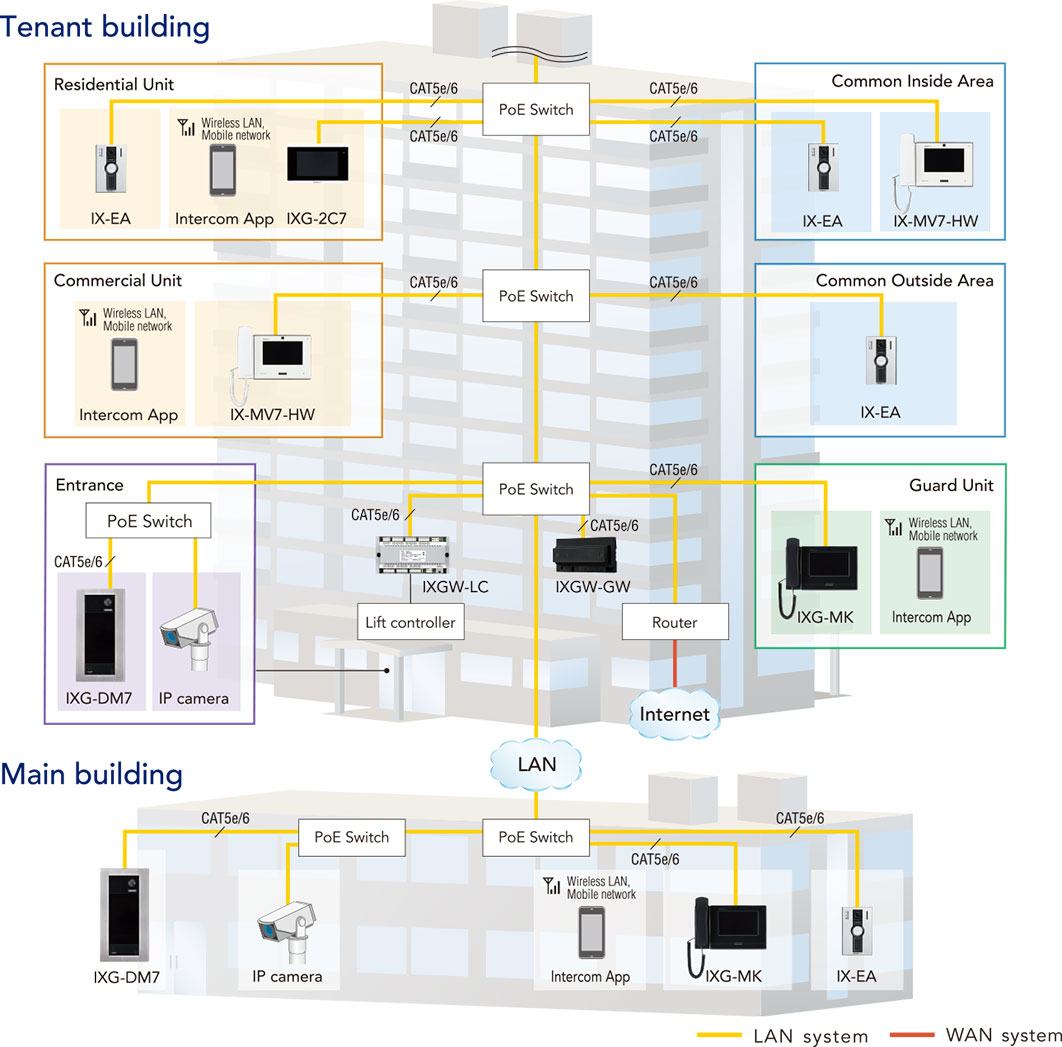

System Configuration Example

system diagram

Maximum Capacity

Maximum number of buildings : 99 buildings (including Tenant building and Main building)

A maximum of 9,999 of the following stations and adaptors can be connected.

  • IXG System: IXG-2C7, IXG-DM7, IXG-MK, IXGW-LC, IXGW-GW
  • IX System: Master stations (IX-MV7-HB, IX-MV7-HW, IX-MV7-B, IX-MV7-W), Handset sub stations (IX-RS-B, IX-RS-W), Door stations (IX-EA, IX-DB, IX-BB, IX-DV, IX-DVF, IX-DVF-P, IX-DVF-RA, IX-DVF-2RA, IX-DVM, IX-SS-2G, IX-SSA, IX-SSA-RA, IX-SSA-2RA), IX-SOFT, IXW-MA
  • VoIP Phone

A maximum of 9,999 units x 8 Intercom App (AIPHONE IXG) can be connected.

Residential Unit IXG-2C7 or Handset sub station (max.8 per unit), Intercom App (max.8 per unit), Door station (max.2 per unit)
Commercial Unit Master Station, Handset sub station, IX-SOFT, or VoIP Phone (max.8 per unit), Intercom App (max.8 per unit), Door station (max.2 per unit)
Common Inside Area IXG-MK, Master Station, Handset sub station, IX-SOFT, or VoIP Phone (max.8 per unit), Door station (max.2 per unit)
Common Outside Area Door station (max.10 per unit)
Guard Unit IXG-MK, Handset sub station, or VoIP Phone (max.8 per unit), Intercom App (max.8 per unit), Door station (max.2 per unit)
Entrance IXG-DM7 (max.10 per unit)
Other IXGW-LC (max.16 per building), IXGW-GW (max.99 per system), IXW-MA (max.500 per system)
