Broad coverage through network connections

Full IP-network compatibility, simple installation, and excellent flexibility

Image of Broad coverage through network connections.

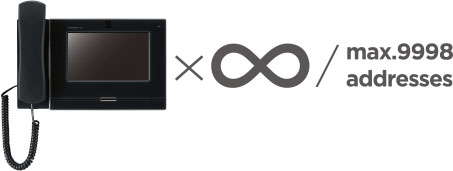

Unlimited number of IX units can be connected

Up to 9998*1 call address registrations in IX master stations. Extreme scalability - use for installations of any size.

*1 IX-MV is incompatible in an expanded mode, and is up to 500 call addresses in standard mode.

max.9998 addresses

Peer to peer configuration results in space savings, reduced installation time, and lower cost

Simply connect the units to Power over Ethernet (PoE) switches. No need for a dedicated server, with the additional benefit of eliminating the risk of system downtime due to server malfunction.

No Server

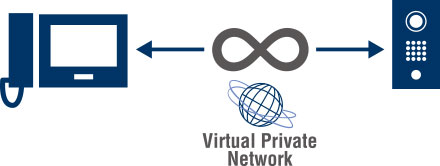

No wiring distance limitations

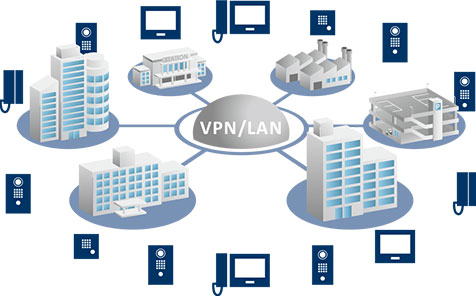

LAN and VPN connections enable implementation over multiple interconnected networks and between remote locations. This allows for closed circuit communication and central control in large facilities, between corporate and satellite offices, and any type of application with multiple locations.

No distance limitations

PoE design

Electrical power is supplied over the LAN port connection.

No Power adapter

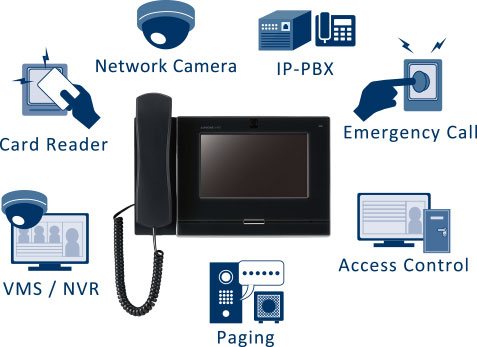

New level of integration flexibility

Enhanced security through integration

Integration

Compatible with third-party systems

The IX System is compatible with the ONVIF*2 Profile S interface specifications for network camera equipment. This allows the intercom to be used with third-party systems, enabling interoperability of integrated IP systems. The open API allows for configuring IP systems with greater flexibility.

Onvif
ONVIF compatible VMS/NVR system Access control system.

*2 ONVIF (Open Network Video Interface Forum) : The interface specifications established by ONVIF provide standards that enable exchange of live video and audio as well as control information by surveillance cameras and other network video devices, even among products from different manufacturers.

Examples of Integration

Use with a Video Management System and Access Control

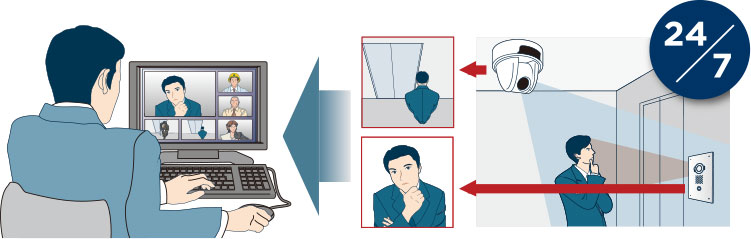

Interconnection with an ONVIF Profile S-compatible network camera system lets you transform door stations into surveillance cameras for enhanced security and facial identification of visitors. Integrate with video management systems for 24/7 recording. Integration with third-party access control is also possible.

Clearly identify visitors with both the intercom and network camera.

Clearly identify visitors with both the intercom and network camera.

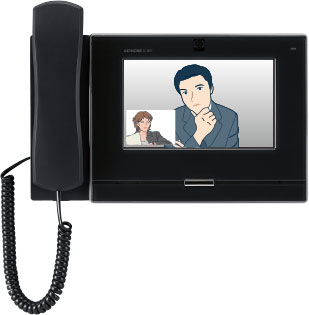

Linking IP cameras with the IX System allows the user to view 2 video feeds simultaneously*3 from the master station. Increase security and situational awareness.

*3 only for IX-MV7-HB, IX-MV7-HW, IX-MV7-B and IX-MV7-W

Clearly identify visitors with both the intercom and network camera.

IP-PBX lntegration

IP-PBX integration enables the IX System to be used as a part of your internal telephone network. Make receive and transfer calls, answer visitors and release doors.

* Integration available for CISCO system (CUCM), Avaya system (Office, Aura), Digium system (Switchvox), Alcatel-Lucent system (OXO, OXE) and Genetec system (Sipelia). For further details, please contact your dealer.

* There are regulations in each country for connecting to a PBX system.

IP-PBX lntegration
